Instruments for Pre-Harvest and Post-Harvest Gas Analysis

The Netherlands – Gas analysis of closed environments is vital in the production of vegetables and fruits during many stages of the supply chain to increase shelf-life and prevent spoilage. There are several small portable instruments from Fresh Produce Instruments that have miniaturized, complex technology to provide accurate data collection and analysis to monitor and control gas levels.

Three gases, oxygen (O2), carbon dioxide (CO2), and ethylene (C2H4) are involved in crucial physiological processes. Tracking gas concentrations to maintain them at optimum levels boosts crop growth, product yield, and quality, as well as extends post-harvest storage. The critical level for each gas varies based on their respective roles at different stages of the supply chain.

Pre-Harvest Gas Analysis

For crops grown in greenhouses, vertical farms, or aeroponics, carbon dioxide and oxygen are monitored throughout the crop period.

Carbon Dioxide

Plants use carbon dioxide, absorbed through leaves, in photosynthesis to produce simple sugars, which form the basis of all compounds found in plants. Moreover, as fruits develop and mature, they accumulate sugars, making total soluble sugars and dry matter content important quality parameters.

CO2 levels, which decrease during the day due to photosynthesis, must be monitored to maintain a minimum of 280-340 parts per million (ppm). At lower levels, CO2 is supplemented with carbon fertilization or by ventilating the room. Some growers increase CO2 up to 1000 ppm to increase crop productivity and quality, depending on the crop and growth stage, temperature, and light intensity.

Oxygen

All fruit and vegetable crops need oxygen. Ventilation provides adequate oxygen for shoots. However, ground oxygen levels can fall due to a rise in temperature and increased irrigation. Levels below 2 ppm affect root growth and the health of the whole plant.

Post-Harvest Gas Analysis

During storage, transport, and retailing, all three gases must be monitored, see Figure 1.

Figure 1: Respiration and ethylene production in different plant phases in climacteric and non-climacteric fruits, Paul et al. 2011. (Image credits: https://www.mdpi.com/1424-8220/19/2/372/htm#B5-sensors-19-00372)

Carbon Dioxide

Postharvest, the levels of carbon dioxide should be below 1 to 5% by volume to prevent irregular ripening, fruit decay, and production of undesirable odors, depending on the commodity.

Oxygen

Fruits continue to respire, even after they are picked, using accumulated sugars and reducing fruit quality. Therefore, oxygen levels should be below 5% in post-harvest stages (again, specific level is dependent on commodity), but should not reach zero. The complete absence of oxygen causes anaerobic fermentation which leads to fruit decay.

Ethylene

Though plants start to produce ethylene from germination, its main role is during ripening in the post-harvest stages (Figure 1).

Climacteric fruits produce ethylene at maturity, and many non-climacteric fruits are sensitive to ethylene. Hence, cold storage and controlled atmosphere storage aim to create conditions that control ethylene levels. The levels of ethylene can vary from 10-100 ppm depending on temperature, as well as oxygen and carbon dioxide concentrations. Ethylene scrubbing can be used to reduce ethylene levels. When fruit is needed for retailing, the ethylene supply is increased to induce ripening.

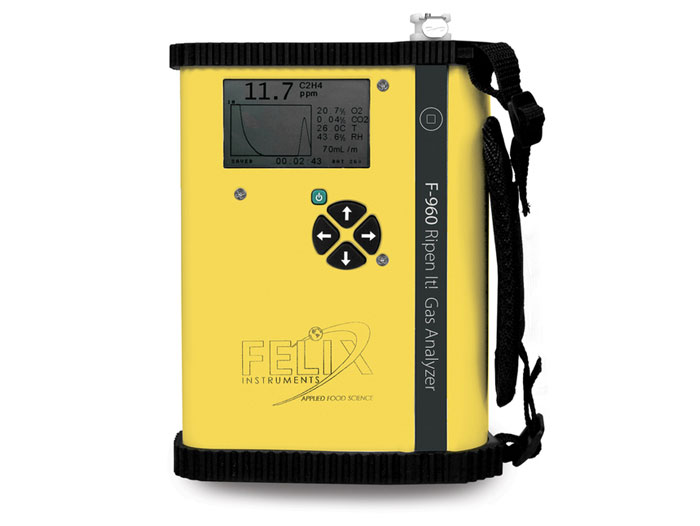

Gas Analysis Devices

There are many precision instruments supplied by Fresh Produce Instruments which are designed to suit these supply chain needs. In all the devices, levels of O2 and CO2 are measured from 0-100%. It is the range of ethylene and its measurement resolution that differs between the tools based on their intended function. Four of these tools are:

Increase Production and Profits

These tools from Felix Instruments measure gases simultaneously, making the task of monitoring and controlling gas levels hassle-free. The devices are rapid and user-friendly, requiring little to no training to use. Gas analysis can play an important role in increasing profits by preventing food loss, extending storage time, and preserving fruit quality.

About Fresh Produce Instruments

Fresh Produce Instruments exists to help the fresh produce industry monitor, maintain, and improve the quality of their fresh produce by the sale and service of technical instruments aimed at addressing the measurement and control of parameters that dictate quality.
